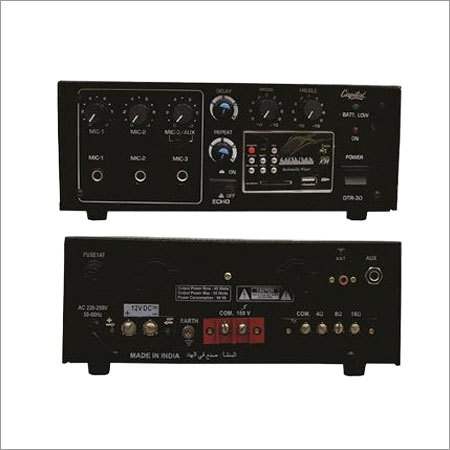

Amplifiers System

Amplifiers System
Amplifiers System
Product Code : DTR-30 USB
Product Description

Having immense expertise in this domain, we as a famous exporter, manufacturer, importer and supplier have been occupied with providing high quality Amplifiers. This speaker is fabricated utilizing the best quality segments under the supervision of our accomplished merchant's experts with bleeding edge procedures. Customers can purchase the offered Amplifier from us at pocket friendly rates. The offered speaker is accustomed to increasing power of signals in different wireless communication devices.

Specification :

Power Requirements

AC: 220-240 V 50/60 Hz, DC- 12 V Car Battery

Power consumption on full load

AC-180 VA, DC-4Amp

Power output R.M.S

Max.- 60 W, At 10% THD- 90 W, At 5% THD- 80 W, At 2% THD - 70 W

Output Regulation

≤ 2dB at No load to full load

MIC 1-3, Input sensitivity AUX 1

0.8 mV/3.3 KΩ, 80 mV/100 KΩ

Frequency response at - 10 dB from rated output

70 Hz to 15 KHz

Pre Out

200mV / 1KΩ


-65 dB

Output taps

COM- 4Ω, 8Ω, 16Ω, 0-70V-100V

Tone Control

Bass + 10dB at 100Hz, Treble + 10dB at 10 KHz


3 Amp-AC Fuse, 8 Amp-DC Fuse

Net Weight

5.4 Kg

Output indicator

LED Indicator
